臨邊護欄的種類也是很多的，很多人在購買的過程中不是很了解，那么臨邊護欄常用防護欄有哪些？接下來臨邊護欄欄廠家就來為大家介紹有關于這方面的內容，一起跟著這篇文章來了解一下。

There are also many types of edge guardrails. Many people do not know about them during the purchase process. What are the common guardrails for edge guardrails? Next, the manufacturer of edge guardrail will introduce the content of this aspect to you, and follow this article to learn about it.

臨邊護欄常用防護欄

Common guardrails for edge guardrails

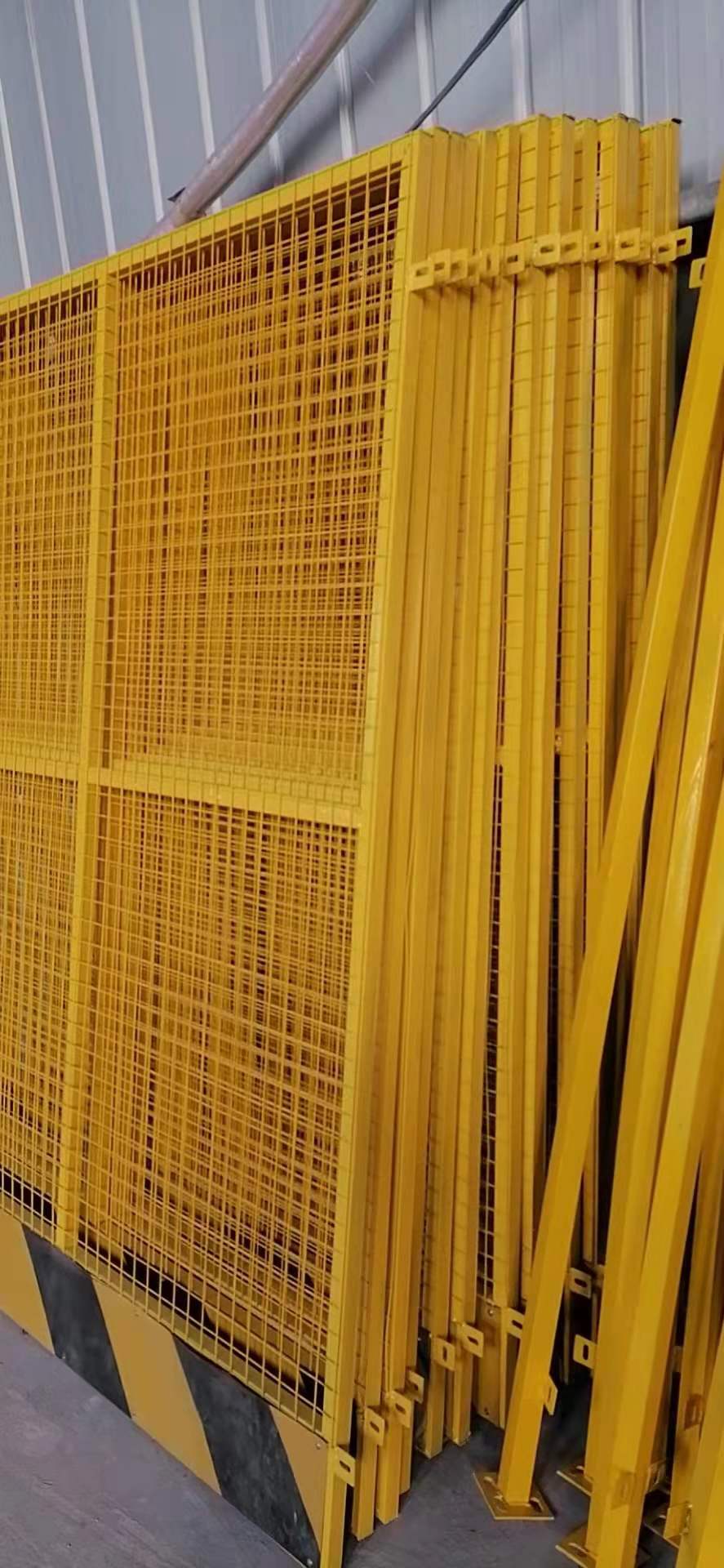

網片型基坑護欄網絲的直徑通常3mm的鍍鋅絲，網孔大小為50*50mm，立柱為50*50mm，邊框?yàn)?0*20mm，下部擋腳板的寬度在150-200mm之間，連接件（耳朵）常用尺寸50*50mm，厚度3mm。底盤常用尺寸120*120mm，厚度4mm。框網和立柱之間使用專用螺絲進行固定，底盤與地面使用8*80或10*80膨脹螺絲固定。

The diameter of the mesh wire of the mesh type foundation pit guardrail is generally 3mm galvanized wire, the mesh size is 50 * 50mm, the column is 50 * 50mm, the frame is 20 * 20mm, the width of the lower toe board is 150-200mm, the common size of the connector (ear) is 50 * 50mm, and the thickness is 3mm. The common size of chassis is 120 * 120mm, and the thickness is 4mm. Special screws are used to fix the frame mesh and the column, and 8 * 80 or 10 * 80 expansion screws are used to fix the chassis and the ground.

欄桿型基坑護欄是用邊框20*30mm的方鋼與內豎管20*20mm的方鋼焊接而成，立柱常用搭配規格為40*40mm或50*50mm方鋼。

The railing type foundation pit guardrail is welded with 20 * 30mm square steel of the frame and 20 * 20mm square steel of the inner riser. The commonly used specification of the column is 40 * 40mm or 50 * 50mm square steel.

臨邊護欄常用防護欄類型有哪些？臨邊護欄常用防護欄類型解析

What types of guardrails are commonly used for edge guardrails? Analysis of Common Types of Side Guardrails

臨邊護欄欄使用要求：

Requirements for use of edge guardrails:

一、臨邊護欄欄需采用工具化和定型化，規格尺寸以及連接方式應符合相關要求。

1、 The edge guardrails shall be toolized and stereotyped, and the specifications, dimensions and connection methods shall meet the relevant requirements.

二、防護欄由上下橫桿、邊框以及內豎管或網片焊接而成，上桿離地1.1-1.2m，下桿離地0.5-0.6m，當橫桿長度達到2m以上時，需要加設專用立柱。

2、 The protective fence is welded by upper and lower cross bars, frames and inner vertical pipes or meshes. The upper bar is 1.1-1.2m above the ground, and the lower bar is 0.5-0.6m above the ground. When the length of the cross bar reaches more than 2m, special columns need to be added.

三、防護欄需自上而下加設密網封閉，在欄桿下部應設置高度18cm以上的擋腳板，擋腳板刷紅白或黑黃相間的條形警示漆。

3、 The protective fence shall be sealed with a safety net from top to bottom. A toe board with a height of more than 18cm shall be set at the lower part of the fence. The toe board shall be painted with red white or black yellow strip warning paint.

四、防護欄安裝固定需牢固，欄面與橫桿的連接應能承受來自任何方向1000N的外力沖擊。

4、 The protective fence shall be firmly installed and fixed, and the connection between the fence surface and the crossbar shall be able to withstand 1000N external force impact from any direction.

五、在接料平臺兩側使用時，需自上而下加掛密網。

5、 When used on both sides of the receiving platform, a safety net shall be hung from top to bottom.

六、當臨邊護欄使用在街道附近時，除防護欄桿外，敞口立面還需滿掛密網作全封閉處理。

6、 When the edge guardrail is used near the street, in addition to the guardrail, the open facade shall also be fully enclosed with a safety net.

以上就是為大家介紹有關于臨邊護欄常用防護欄，希望對大家有所幫助。通過以上的介紹，相信大家對臨邊護欄欄有了更加深入的了解。關注我們http://kshyinuo.com為你了解更多事項！

The above is to introduce the commonly used guardrails for edge guardrails, hoping to help you. Through the above introduction, we believe that we have a more in-depth understanding of the edge guardrail. Follow us http://kshyinuo.com Learn more for you!
